Arc Length Control

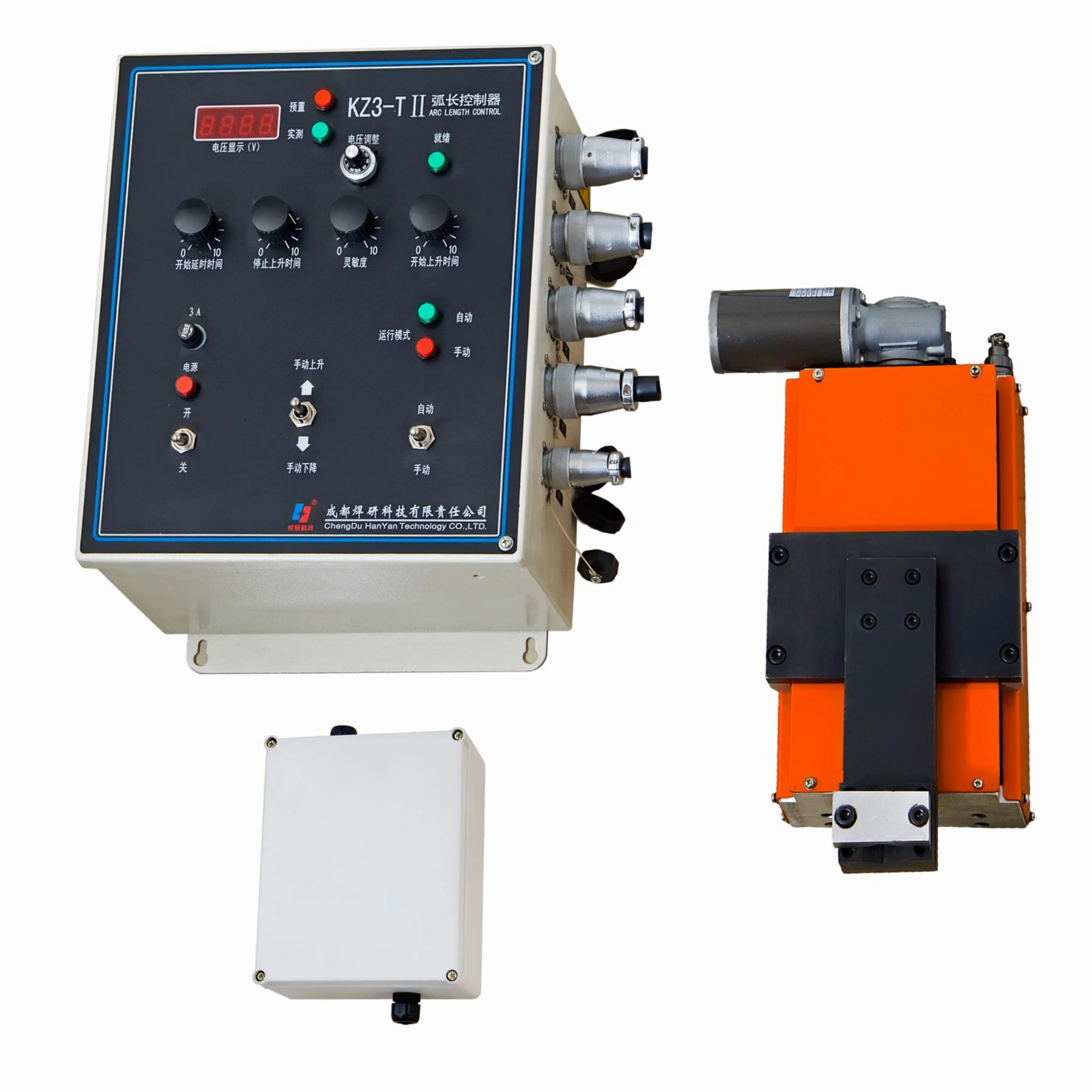

ALC-Ⅲ is a kind of universal welding equipment for TIG/PAW, designed for compensating arc length dynamically to improve forming, quality and productivity. it's mainly used in 5 welding processes: DC or AC argon arc welding, DC or AC pulsed argon arc welding and plasma welding. Arc voltage, tracking time, sensitivity and other parameters can be set in control to control torch vertical motion for tracking and compensating arc length.Options: torch and its holder etc.
GZQ-M consists of sensor, control system and actuator. Firstly, mechanical probe moves along the joint in front of torch to collect its changing information, then processor translates those changing information into actuating signal for motor-driven sliders(Y/X) to make the torch moving accurately. track seam and correct welding in real-time with high control precision and fast response speed. It's mainly used with existing semi- automatic welding machine lo automate TIG/CO,MIG/SAW processes for butt weld, lap weld, comer weld and other welds.Options: torch, SYK-1 remote control box.
|
Max. speed |
600mm/min. |
|
Voltage sensing |
0-51.1V |
|
Start delay |
0.1-9.9s |
|
Retract delay |
0.1-9.9s |
|
Deadband |
0.1-2.0V |
|
Sensitivity |
1-100% |
|
Speed |
150-1000mm/min. |
|
Detection |
110mm(X,Y axis) |
|
Accuracy |
±0.13mm |
|
Loading capacity |
0-50kg |
Precise Arc Length Control: Enhanced Accuracy and Efficiency
Precision arc length control system with seam tracking capabilities, operating at a maximum speed of 600mm/min. Voltage sensing range from 0-51.1V with adjustable start and retract delay features. With a deadband range of 0.1-2.0V and sensitivity from 1-100%, this system offers accurate detection within 110mm(X,Y axis) with a ±0.13mm accuracy and a loading capacity of 0-50kg.
Precision Arc Length Control
This product features precise arc length control with a maximum speed of 600mm/min for efficient and accurate welding operations. The voltage sensing capabilities ranging from 0-51.1V ensure optimal performance, while the sensitivity and speed adjustment options allow for customization based on different welding requirements. With a detection range of 110mm on the X and Y axis and an accuracy of ±0.13mm, this product guarantees high-quality results while supporting a loading capacity of up to 50kg for versatile use in various industrial applications.
