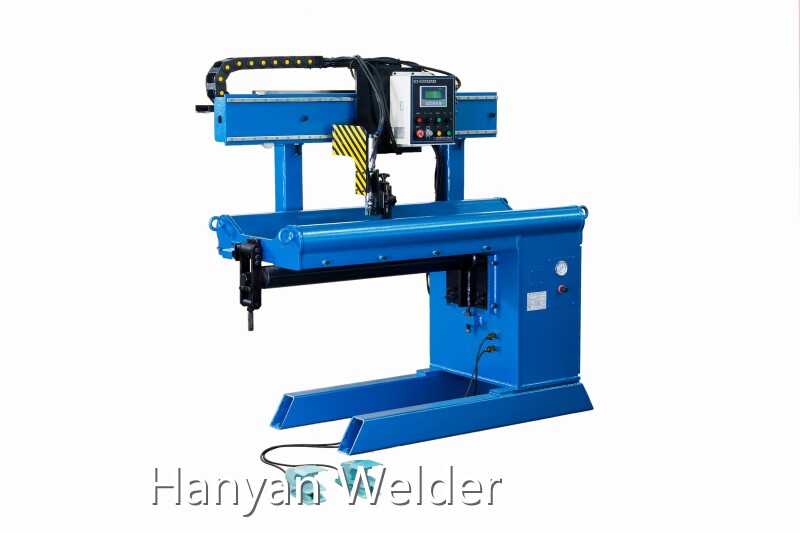

Longitudinal Welding Machine by Hanyan Welder

Product details of the longitudinal welding machine

Product Introduction

Thanks to the expertise of our professionals, Hanyan Welder longitudinal welding machine is carefully manufactured. longitudinal welding machine is produced according to GB and IEC standards. Under technical support, longitudinal welding machine is of good quality.

Welding length (covering 500mm-3000mm), applicable workpiece diameter and welding thickness: all are standard finalized products, which can realize longitudinal straight seam welding of workpieces such as cylinders and conical tubes, and are suitable for various materials and welding processes.

The welding workpiece thickness of this series of equipment ranges from 0.5mm to 8mm, and the applicable workpiece inner diameter (minimum diameter) varies according to specific models, ranging from Φ75mm to Φ270mm, with a maximum inner diameter of Φ850mm (expandable with standard heightening block accessories), and different models accurately match the welding needs of different specifications of workpieces.

he equipment has a variety of optional accessories, which can be flexibly selected according to actual production needs, including: 1. Loading and unloading trolley (manual, pneumatic or electric adjustment) for fast handling and positioning of workpieces; 2. Centering mechanism (manual or pneumatic) to improve workpiece assembly accuracy and ensure welding quality; 3. Automatic wire feeding mechanism, suitable for TIG and plasma welding processes, to improve welding efficiency and weld forming effect; 4. Arc length automatic tracking system to accurately track the weld position and reduce manual adjustment errors; 5. TV monitoring system to real-time monitor the welding process for timely parameter adjustment; 6. Customizable bed heightening blocks to further expand the range of workpiece welding inner diameter; 7. Different types of welding power sources (TIG, MIG, MAG, submerged arc welding) to meet the needs of various welding processes.

Company Advantage

• Hanyan Welder has a relatively complete service management system. The professional one-stop services provided by us include product consultation, technical services, and after-sales services.
• Hanyan Welder has advantages in human resource. With a focus on talents cultivation, we gather a group of excellent R&D and management talents.
• Since its establishment in our company has walked through the journey of years. Nowadays, we create a large-scale management and gain rich management experience.
• Hanyan Welder enjoys an excellent geographical location with traffic convenience. They are a good foundation for our own development.
Welcome all customers in need to purchase our products.
