Research and development, production, and sales of intelligent equipment for automatic welding machine.

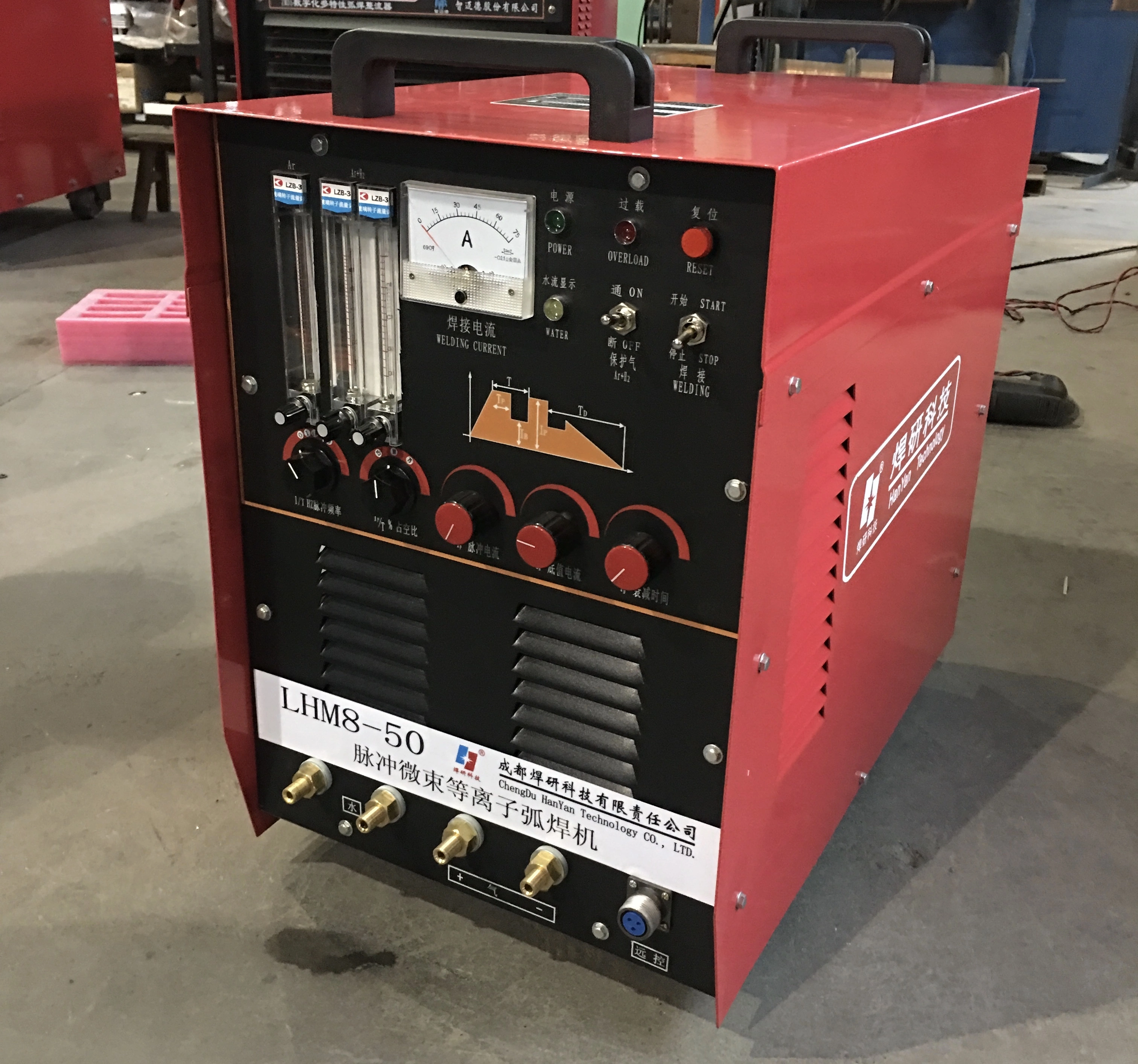

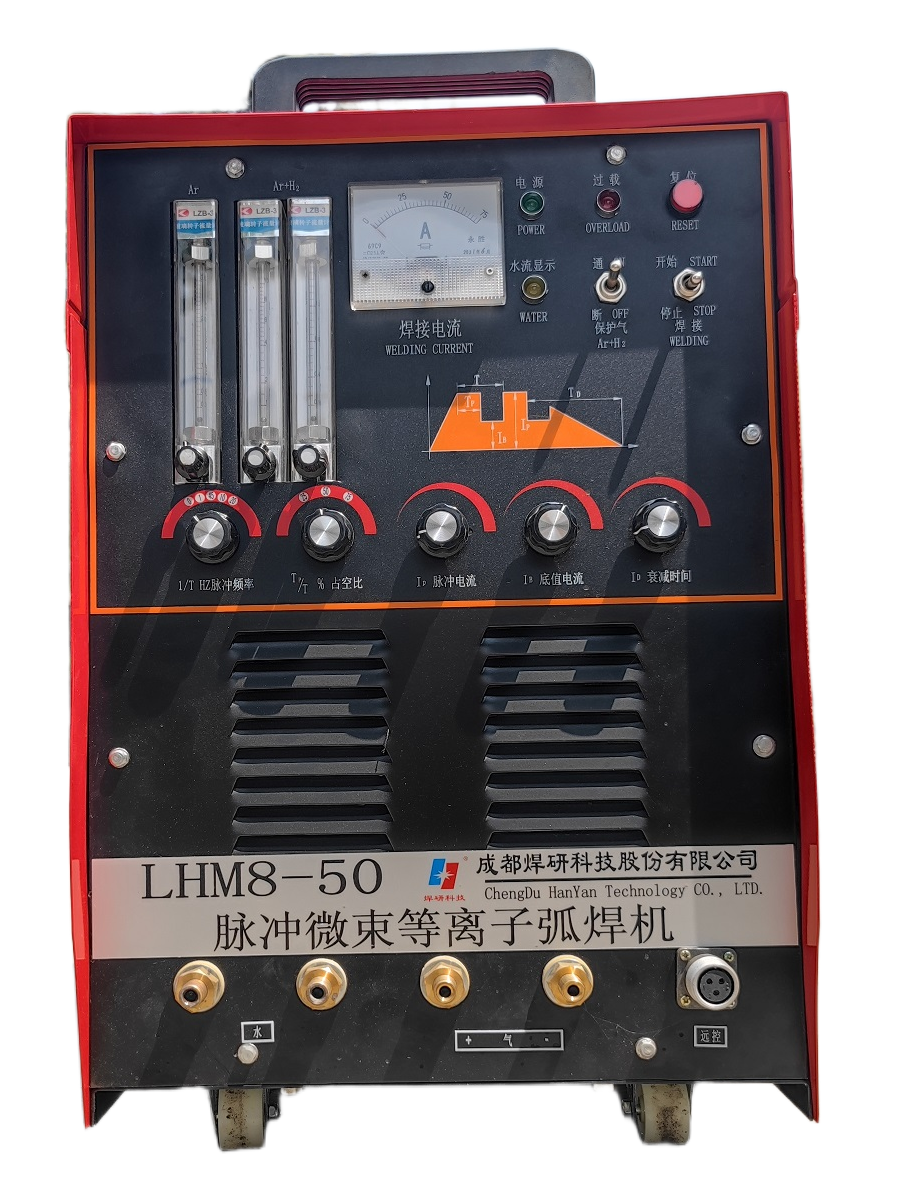

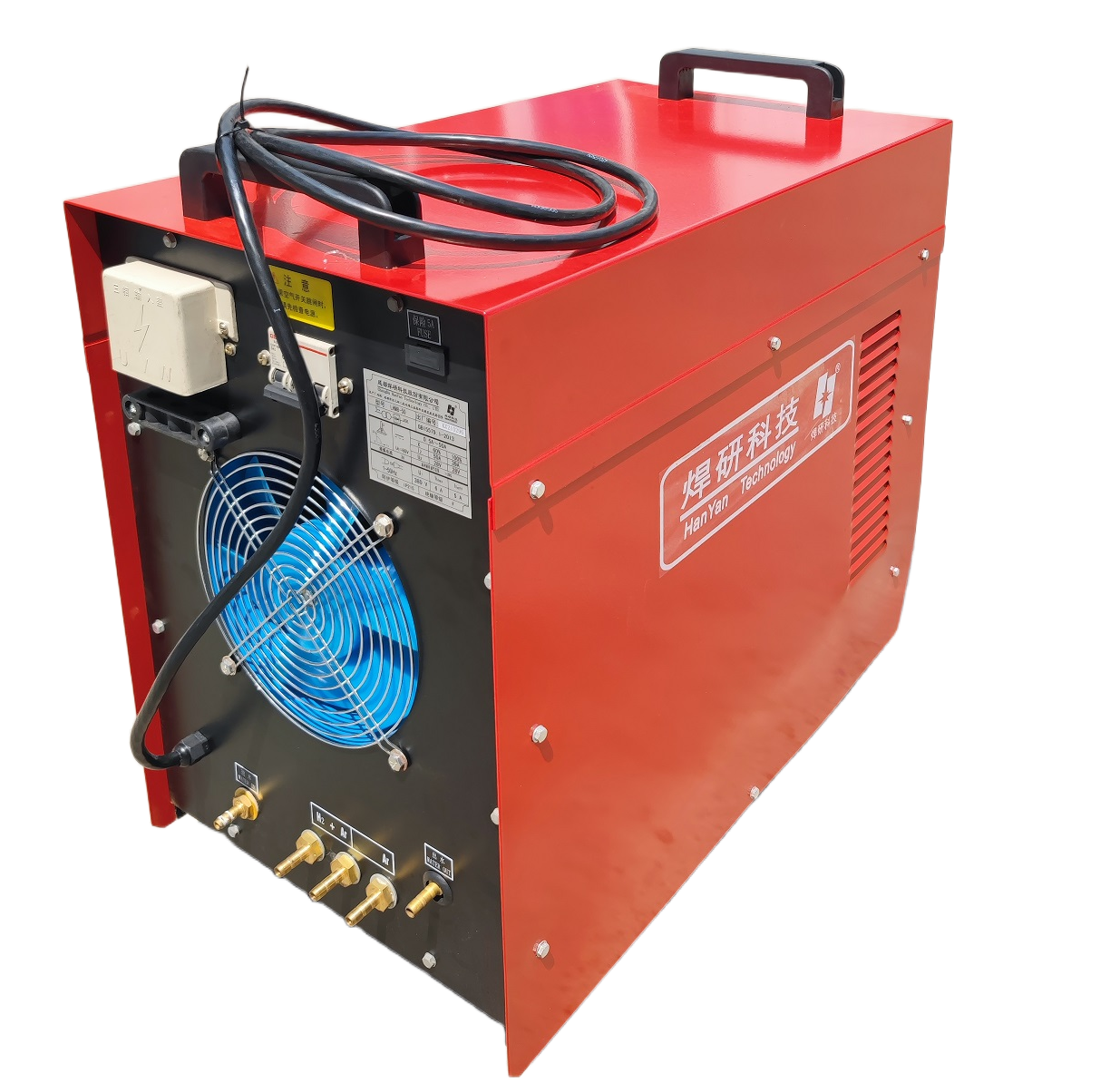

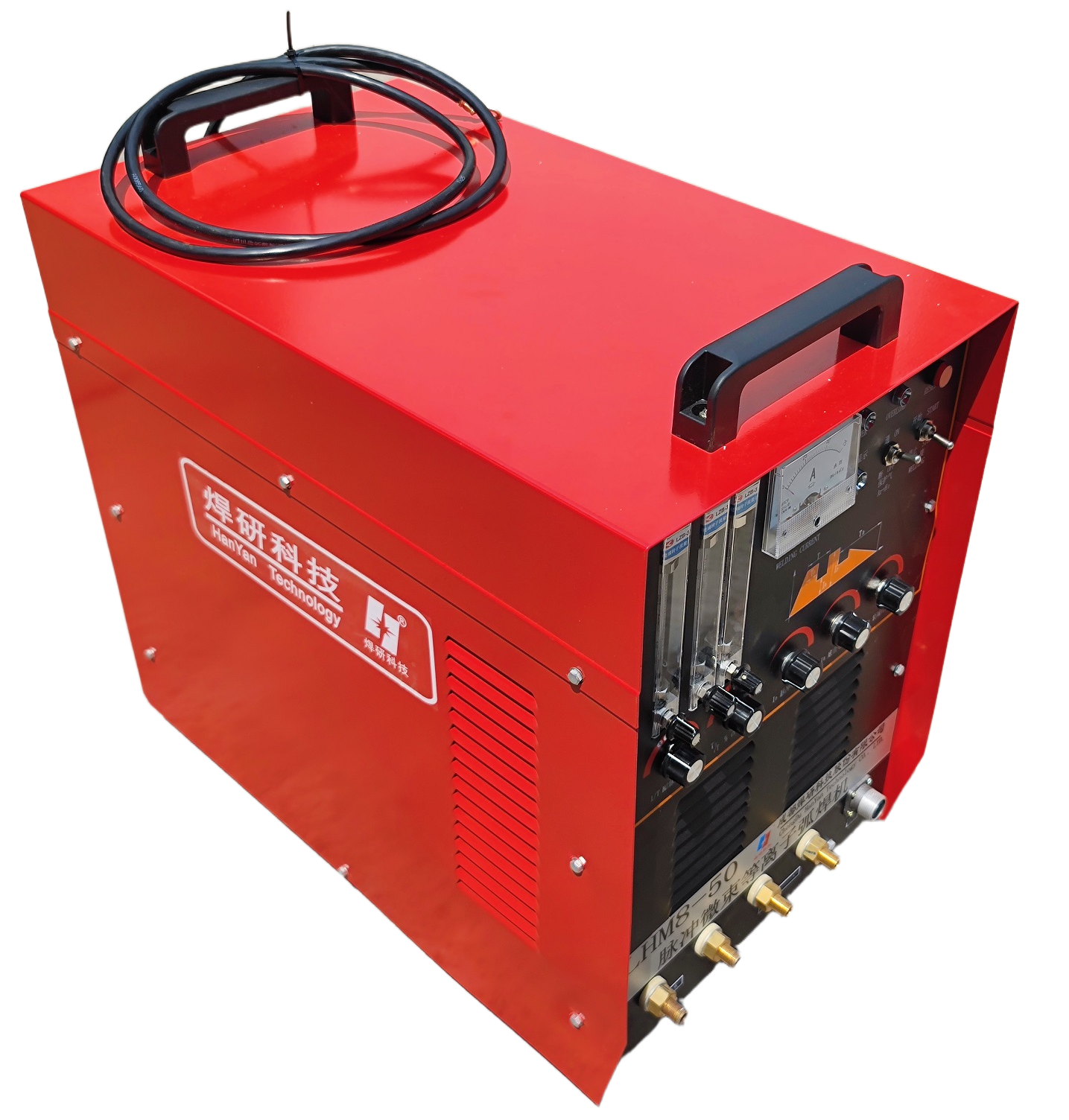

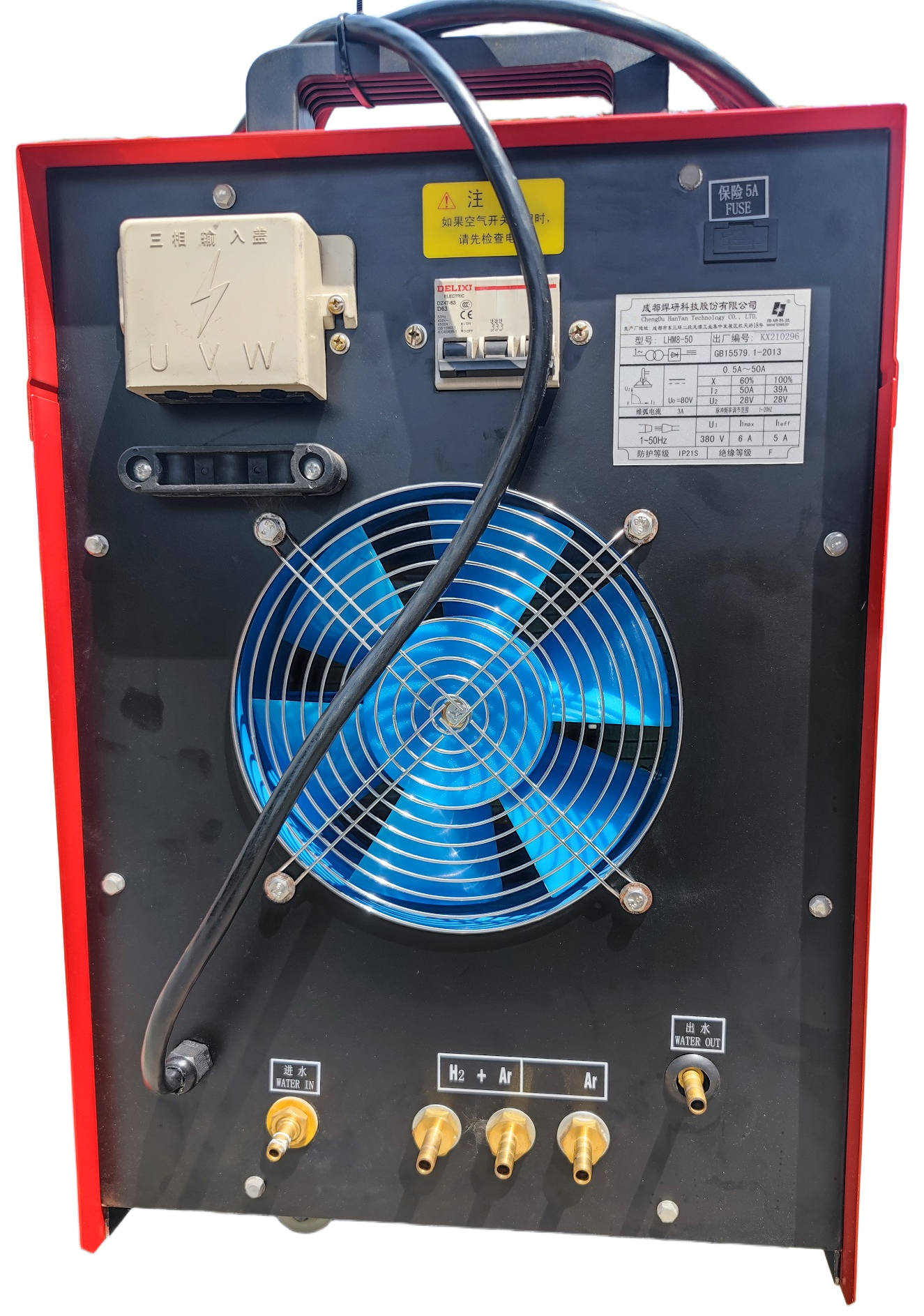

Pulse Microplasma Arc Welding Source(LHM8-50)
"Equipped with pulse function, it can accurately control the heat of the molten pool and achieve beautiful weld formation.
▉Suitable for welding various metals and alloy materials;
▉Weldable material thickness 0.1-1.5mm;
▉Specially suitable for welding corrugated tubes, sensor membranes, and motor laminations."
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Inlet pressure (MPa)
0.15～0.3
Pulse frequency adjustment range
1～20
Phase Line
3
Dimensions
610×360×670
Weight
75
Insulation Class
F
Current Adjust Range
2～50
Rated Duty CyCle
60%
Rated Output Curtent
50
RATED input Current
6
RETED input Capacity
2.8
POWER
AC380V、50HZ
